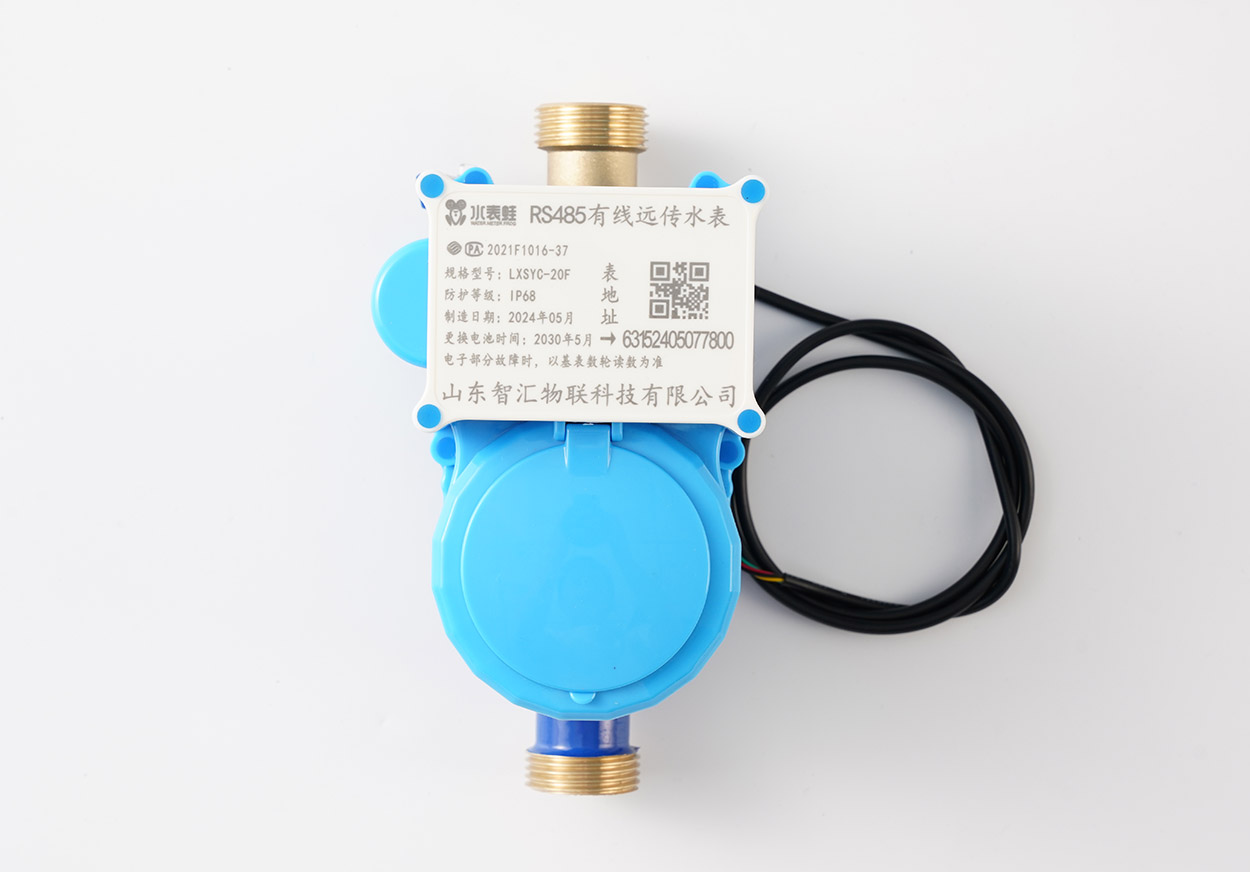

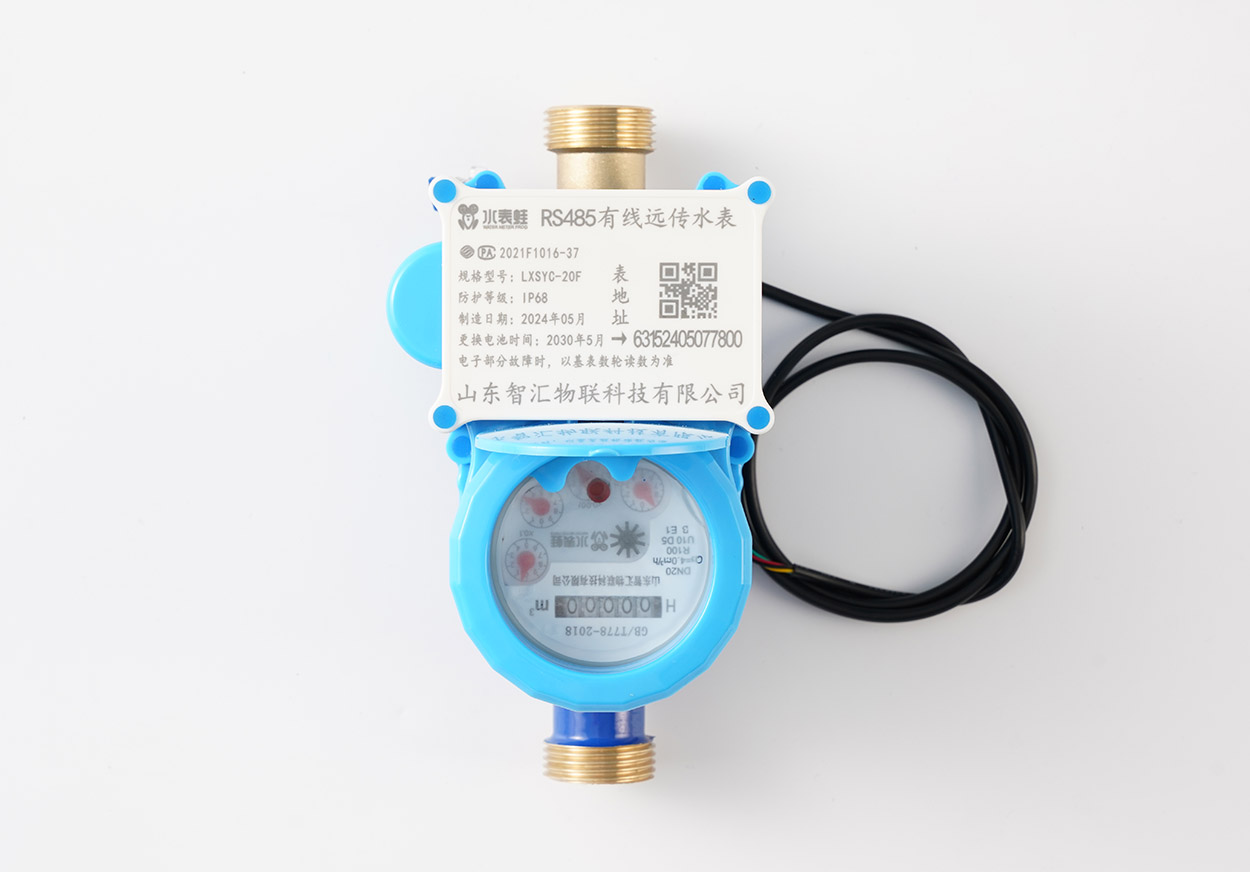

脈沖有線遠傳水表
- 產品特點

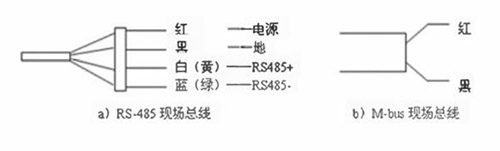

- 遠傳方式可使用M-bus總線或RS485總線;
- 發訊脈沖當量最小可以達到0.001立方米;
- 脈沖采樣或開關閥時由電池供電,總線通訊時由總線(M-bus)或外部供電(RS485);
- 超低功耗設計,使用壽命可以保證8年以上;
- 采用先進的數據編碼及校驗方式,通訊可靠性高;
- 表有*的地址標識,保證數據的*性、正確性;
- 滿足EMC、ESD、EMI等電子產品電磁兼容方面的設計要求;
- 與上位機系統相結合,建立遠程自動抄表管理系統,真正實現抄表自動化。
The remote transmission method can use M-bus or RS485 bus;
The minimum transmission pulse equivalent can reach 0.001 cubic meters;
When pulse sampling or switching valves, they are powered by batteries, and when communicating on the bus, they are powered by the bus (M-bus) or external power (RS485);
Ultra low power consumption design ensures a service life of over 8 years;
Adopting advanced data encoding and verification methods, high communication reliability;
The table has a unique address identifier to ensure the uniqueness and accuracy of the data;
Meet the design requirements for electromagnetic compatibility of electronic products such as EMC, ESD, EMI, etc;
Combined with the upper computer system, establish a remote automatic meter reading management system to truly achieve meter reading automation.
產品參數(中文) Product parameters(English) |
參數值(中文) Parameter values(English) |
---|---|
通訊協議
Communication protocol |
CJ/T188 DL/T645
自定義(Customization) |
工作環境
Work environment |
-10°C~55°C,<100%RH |
氣候和機械環境條件等級 Climate and mechanical environmental
condition levels |
B |
電磁兼容性等級
Electromagnetic compatibility level |
E1 |
通信方式 Communication mode |
RS-485 M-bus |
壓力損失
pressure loss |
≤0.063Mpa |
防護等級
Protection level |
IP68 |
靜態電流
Static current
|
≤3UA |
