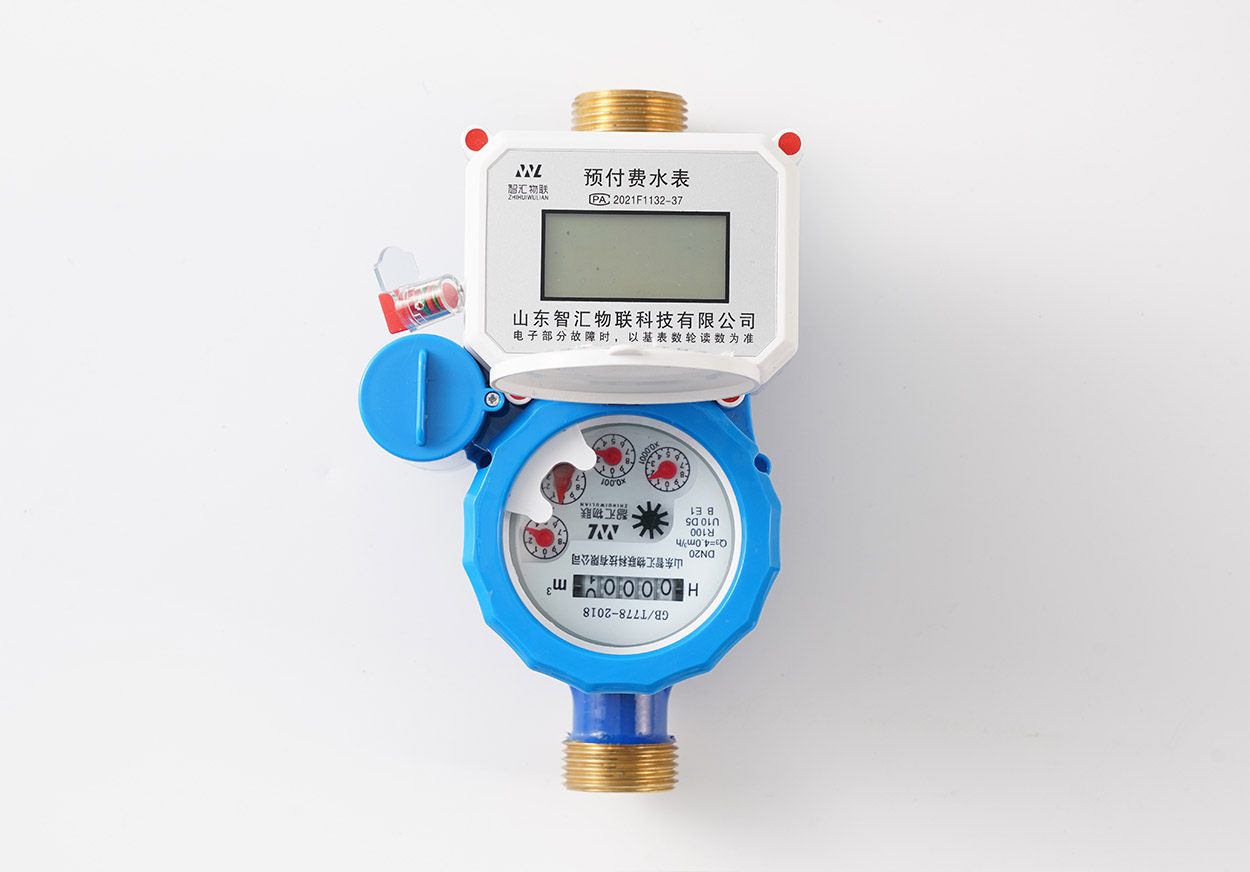

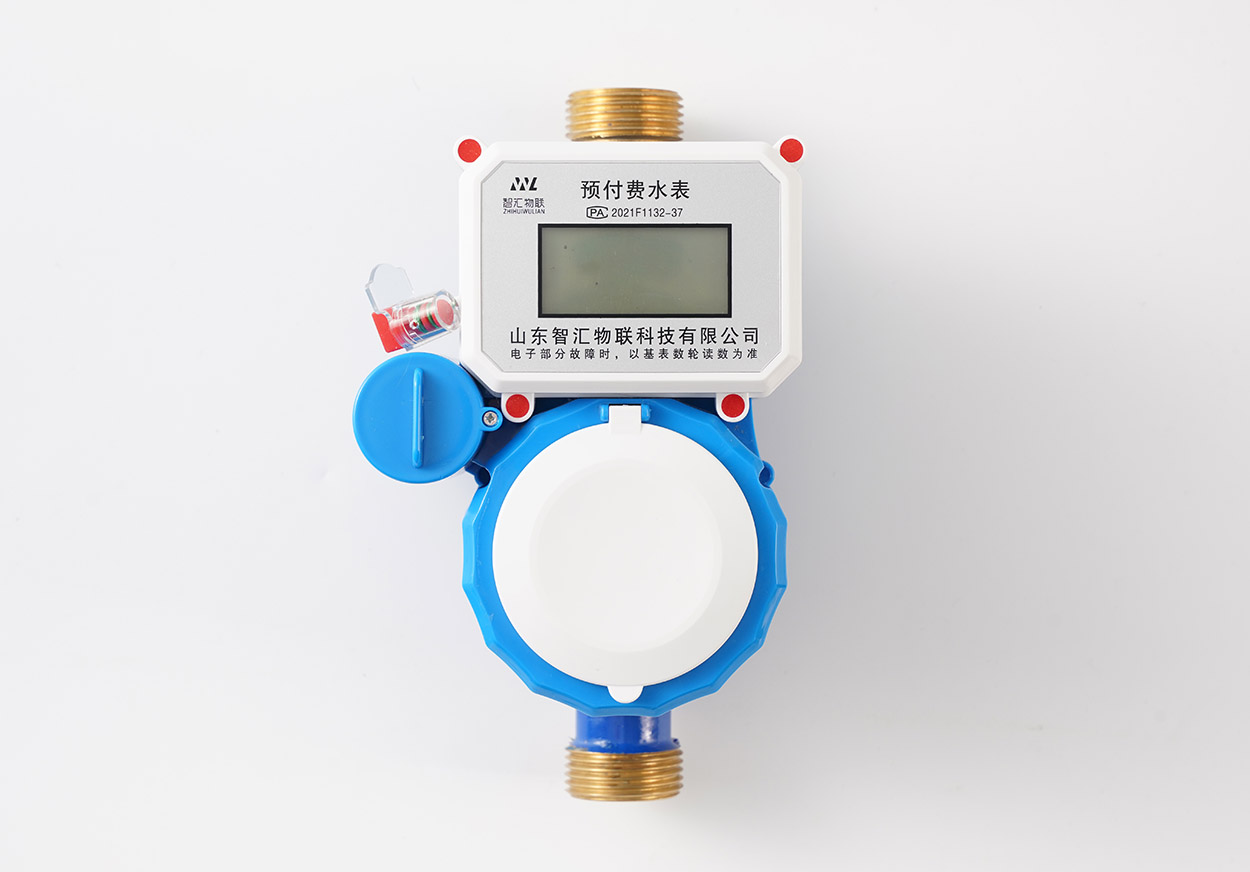

IC卡預付費水表
- 產品特點
- 超長待機壽命:鋰電池供電,設計使用壽命≥10年;
- 超低功耗:靜態功耗≤10uA,年均功耗≤120mA;
- 低壓關閥:當電流≤2.7v時,水表自動關閥;
- 防磁攻擊:當磁性物體靠近時,水表自動關閥;
- *防護等級:防護等級達到并優于IP68;
- 保密性強:邏輯加密,一表一卡,不可破解復制;
- 斷電關閥:當水表線路受到強力攻擊切斷線路時,水表由內置電容瞬時釋放大量電流立刻關閥。
Ultra long standby life: Powered by lithium batteries, designed for a service life of ≥ 10 years;
Ultra low power consumption: static power consumption ≤ 10uA, annual power consumption ≤ 120mA;
Low pressure valve closing: When the current is ≤ 2.7v, the water meter automatically closes the valve;
Anti magnetic attack: When a magnetic object approaches, the water meter automatically closes the valve;
Maximum protection level: The protection level reaches and is superior to IP68;
Strong confidentiality: logical encryption, one table, one card, non cracked and non replicable;
Power off and valve closing: When the water meter circuit is cut off by a strong attack, the water meter will instantly release a large amount of current from the built-in capacitor and immediately close the valve.
產品參數(中文) Product parameters(English) |
參數值(中文) Parameter values(English) |
---|---|
顯示內容
Show contents |
剩余金額、已購水量、已用金額、電壓、版本號等內容 |
工作環境
Work environment |
-10°C~55°C,≤100%RH |
氣候和機械環境條件等級 Climate and mechanical environmental
condition levels |
B級 |
電磁兼容性等級
Electromagnetic compatibility level |
E1 |
供電電源 Power supply |
DC2.8V~3.6V |
壓力損失
pressure loss |
≤0.063Mpa |
防護等級
Protection level |
IP68 |
靜態電流
Static current
|
10uA |
