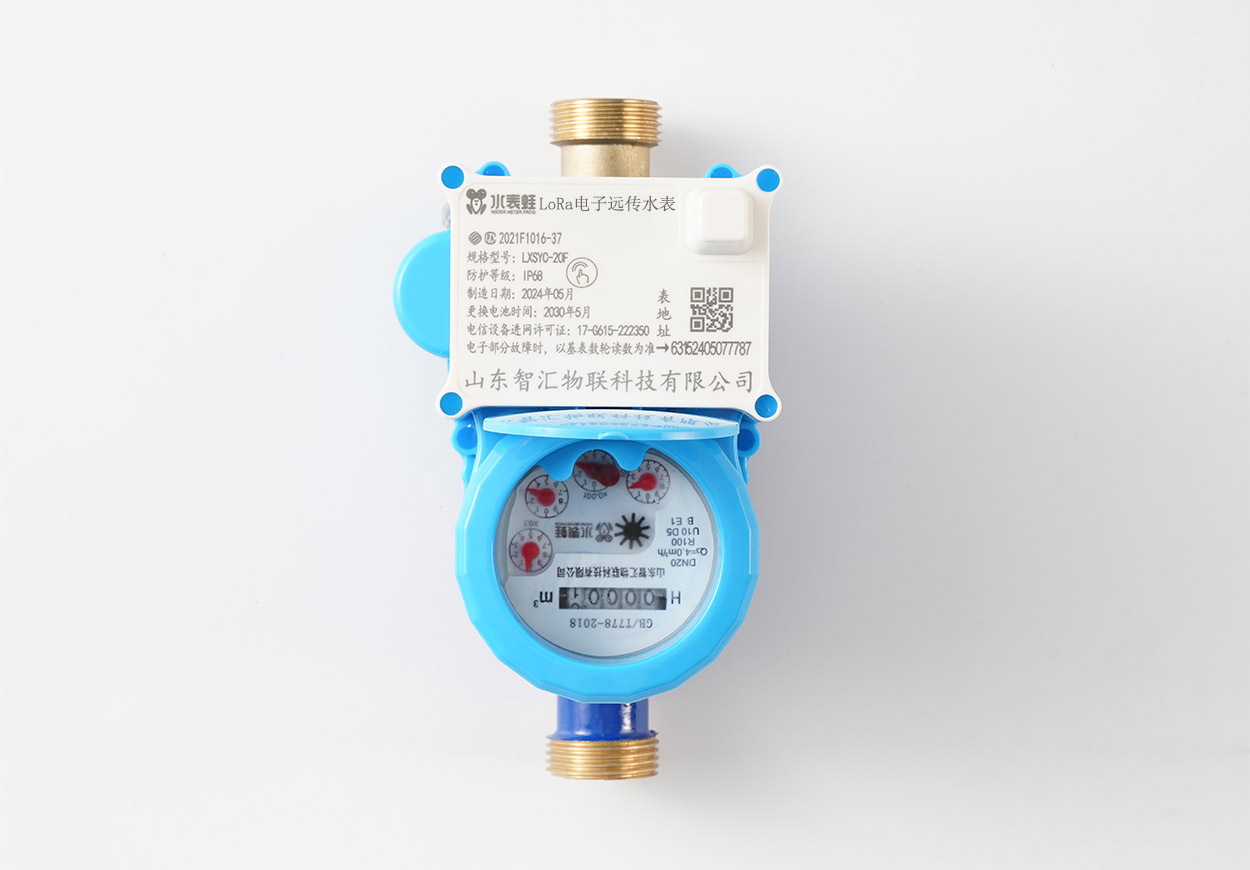

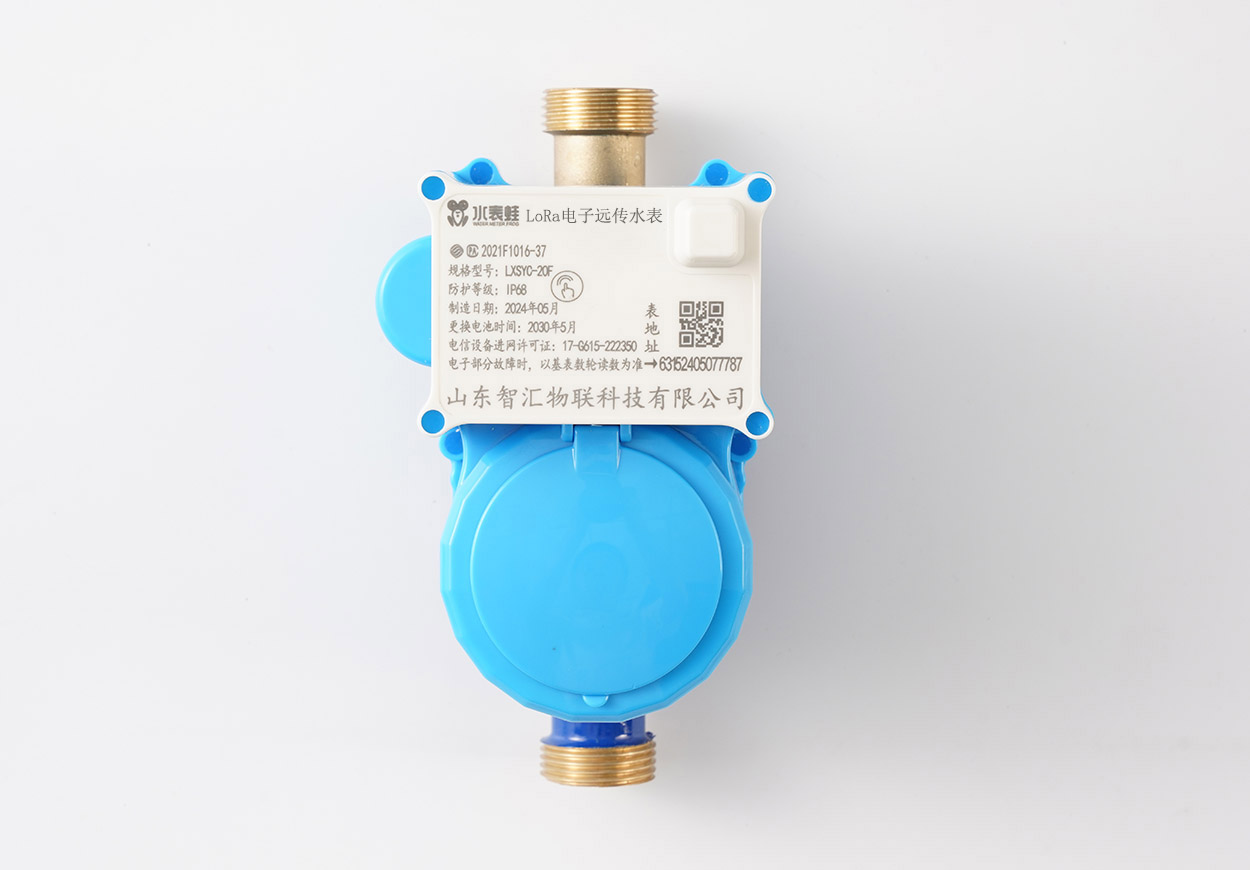

LoRa物聯網水表
- 產品特點
- 兼容多種采樣方式:模塊下行可接干簧管采樣、磁阻采樣、霍爾采樣、無磁采樣基表,計量精準;
- 遠程實時抄控:可通過集采器遠程實時抄表、控閥;
- 定時上傳功能:默認6小時上傳一次;
- 觸發實時上傳:可通過觸發磁開關,實時上傳數據;
- 采樣故障檢測功能:當采樣傳感器發生故障時,表具上傳故障信息閥門控制:可遠程或者手持設備控制水表閥門的開和關;
- 機電同步:可做無磁采樣與光電采樣。
- 攻擊關閥功能:具有防外部電、磁攻擊功能,當采樣受到外部電、磁等攻擊時,表具可以自動關閉閥門;
- 閥門故障檢測功能:檢測閥門開、關是否到位,上傳閥門狀態信息;洗閥功能:閥門定期開關,防銹死。
Compatible with multiple sampling methods: the module can be connected to reed sampling, reluctance sampling, Hall sampling, and non-magnetic sampling base meters for precise measurement;
Remote real-time meter reading and control: It is possible to remotely read meters and control valves in real-time through the centralized collector;
Timed upload function: defaults to uploading every 6 hours;
Trigger real-time upload: Data can be uploaded in real time by triggering the magnetic switch;
Sampling fault detection function: When the sampling sensor fails, the meter uploads fault information. Valve control: The opening and closing of the water meter valve can be controlled remotely or by handheld devices;
Electromechanical synchronization: can perform both non-magnetic sampling and optoelectronic sampling.
Attack valve closing function: It has the function of preventing external electrical and magnetic attacks. When the sampling is attacked by external electrical and magnetic attacks, the meter can automatically close the valve;
Valve fault detection function: detects whether the valve is open and closed properly, and uploads valve status information; Valve washing function: The valve is opened and closed regularly to prevent rust.
產品參數(中文) Product parameters(English) |
參數值(中文) Parameter values(English) |
---|---|
調制方式
Modulation |
LoRa
|
工作電壓 Working voltage |
2.7~3.6V |
靜態功耗 Static power consumption |
<10uA |
發射電流 Emission Current |
<110mA |
接收電流 Receiving Current |
<15mA |
發射功率 Transmission power |
<20dBm |
信號靈敏度 Signal sensitivity |
-128±1dBm |
工作溫度 Operation temperature |
-20~75°C |
工作濕度 Working humidity |
0~95%,無冷凝 No condensation |
喚醒時間 Wake-up time |
實時喚醒
Real time wake-up |
無線阻抗 Wireless impedance |
50Ω |
工作頻段
Working frequency band |
470-510MHz、868-915MHZ |
通訊距離
Communication Distance |
2-5KM |
